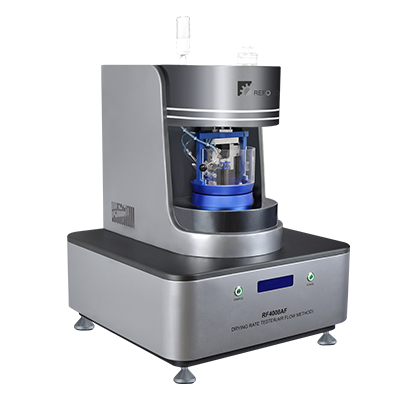

AATCC200 Drying Rate Tester-Air Flow Method RF4008AF

Drying Rate Tester-Air Flow Methoda fully automated testing machine, is based on the requirement of US AATCC200 testing standard, specially developed an automatic fabric drying rate tester.

Test Scope Textile fabrics other than those from socks and hosiery

Testing StandardsAATCC200 and others


Product Advantages:

1.     Parent protect product.

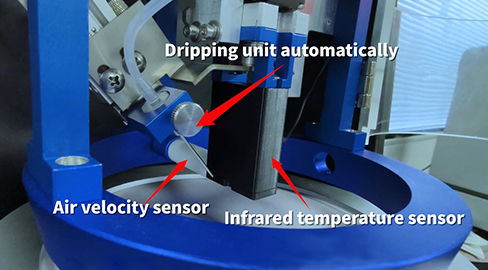

2.     Automatic detection of water penetration.

3.     Automatic specimen clamping.

4.     Automatic water dripping.

5.     Automatic air flow control.

6.     Automatic processing and calculation of Max. water absorbency.

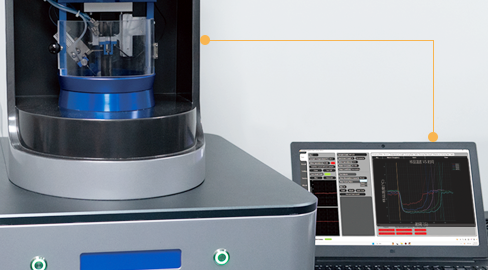

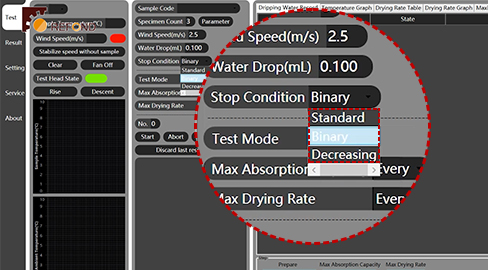

7.     Automatic data collection and calculation by PC software.



a)       Fan Box165mm × 165mm × 27.5mm ± 1mm

b)       Fan Box Open Diameter130.0mm ± 1mm

c)       Air Speed0.2 m/s - 4.5m/s ± 0.1m/s

d)       IR thermocouple15-50?C ± 0.1 ?C

e)       Water Dripping Range and Accuracy0.05ml - 1.00 ml ± 0.003ml, 1.00ml - 4.50 ml ± 0.010ml

f)        Data TransferUSB to RS232 cable

g)       Test InterfaceCurves and tables

h)       Test ReportAutomatically saved and easy print

i)         PowerAC 230V50Hz/60Hz

j)         Dimension 500(L) ×500(W) ×560(H)mm

k)       WeightApproximate 50kg

Order Information

RF4008AF           Drying Rate Tester Main Machine + Software

RF4008AF/1        Drying Rate Tester Software

RF4008AF/2        Computer

RF4008AF/3        Sample Holder

RF4008AF/4        USB Cable
