Automatic Vertical Wicking Tester, detecting the wicking rate and height of the sample. Hang the sample vertically, immerse one end in the liquid, measure the height of the liquid rising along the sample within a certain period of time, and calculate the wicking height and rate of the sample.

The RF4008AWV Automatic Vertical Wicking Tester adopts a new design concept. The testing instrument is divided into a sample waiting area, a testing area, and a sample recycling area. It can place up to 30 samples at a time and can achieve the process of multiple sample queues, automatic immersion in water, and automatic testing of wicking height, maximizing testing efficiency. This machine adopts an advanced visual system, combined with the functions of a robotic arm, to complete the entire testing process. All functions are automatically executed, and after a batch of samples is placed, unmanned testing can be achieved under black light conditions. Can test 30-120 samples per day.

Scope of application: Woven fabrics, knitted fabrics, non-woven fabrics, or any absorbent fabrics.

Applicable standards: AATCC197, AATCC213, FZ/T 01071, GB/T 21655.1 and other standards.

Specification parameters:

1.       10 "large screen industrial control all-in-one computer.

2.       Sample waiting area: 10 sample holders, up to 30 samples.

3.       Automatically capture samples.

4.       Automatically immerse the lower end of the sample into water.

5.       Automatically grab samples to the testing area.

6.       After the test is completed, automatically grab the sample to the sample recycling area.

7.       Intelligent queuing test.

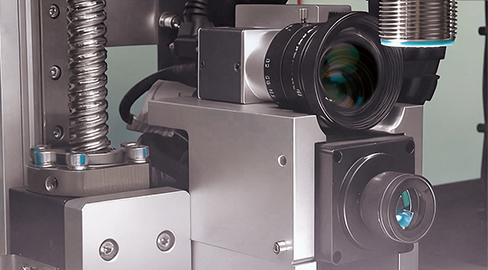

8.       Adopting advanced visual system to automatically detect the wicking height.

9.       At the same time, it can detect the wicking height on both sides of the sample.

10.    Measurement accuracy of wicking height: ± 0.5mm.

11.    Equipped with a container that can hold three samples immersed in water simultaneously.

12.    Automatic control of liquid level.

13.    The measurement time interval can be customized.

14.    Equipped with two kinds of sample holders that are compatible with GB/T, FZ/T, and AATCC testing standards

15.    Equipped with 30 tension clips to hold the sample at the bottom and keep it vertically immersed in water.

16.    The computer software displays sample images, wicking height, and data charts, with a user-friendly interface and high degree of visualization.

17.    Computer software can automatically save data and facilitate printing.

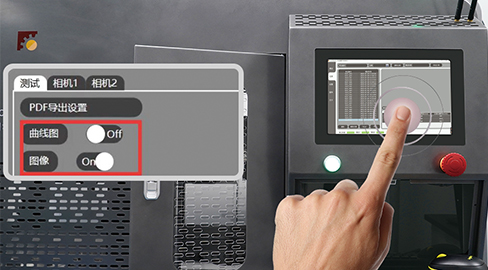

18.    Capable of exporting Excel and PDF reports, with the option to choose whether to export images from PDF reports.

19.    The machine comes with a WiFi antenna, which can wirelessly connect to the network and achieve functions such as data transmission and report printing.

20.    The machine comes with a built-in USB interface.

21.    Equipped with wireless mouse and keyboard for convenient and fast operation.

22.    Dimensions: 1120mm (length) x 800mm (width) x 950mm (height).

23.    Weight: Approximately 200kg.

Order Information:

RF4008AWV       Automatic Vertical Wicking Tester

RF4008AWV/1     Specimen Holder (FZ/T, GB/T)

RF4008AWV/2     Specimen Holder (AATCC)

RF4008AWV/3     Tension clamp
