Drying Rate Tester – Balance Method RF4008

Drying Rate Tester – Balance Methoda special designed PC software, connected with high precision digital balance, online monitoring the weight of the fabric which had been added a specified

amount of water, analyze the dry time and drying rate (evaporate rate) of the tested fabrics.

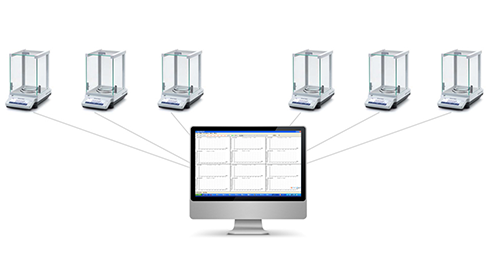

1.     RF4008 software can connect up to 6 digital balances and conduct test simultaneously. Data can be transferred from digital balances to PC through USB cables.

2.     The lab. can buy 1 to 6 units of digital balances up to their own needs.

3.     Testing progress can be observed through PC software and is display by curves and tables.

4.     Test report is exported to Microsoft Excel for easy analysis and printing.

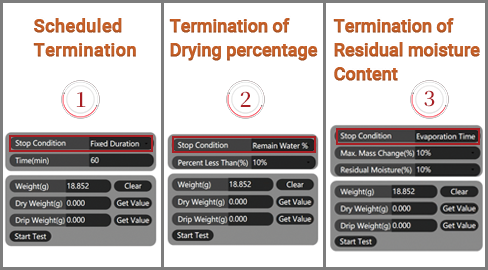

5.     The stop conditions can be set through software: test time or dry percentage is selectable.

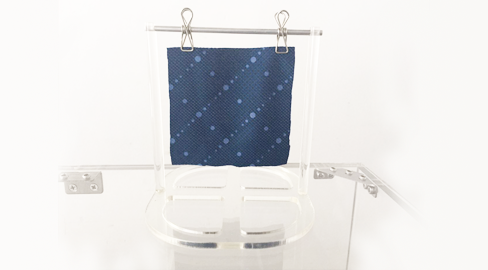

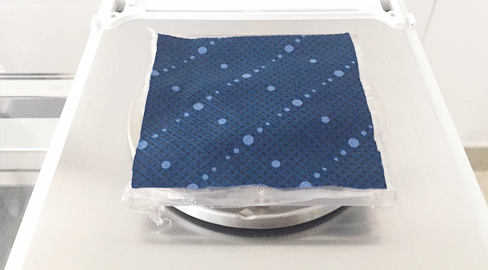

6.     Horizontal and Vertical Hanging specimen racks are available.

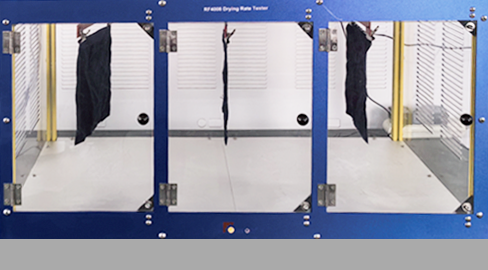

7.     A transparent cover is provided when 3 digital balances are bought. It provide a consistent environment for reliable test.


Test Scope Knitted fabrics or any quick-dry fabrics

Testing StandardsISO 17617GB/T 21655.1, AATCC, Intertek, Adidas testing standards or methods


a)     Specially designed software, can connect up to 6 digital balance simultaneously.

b)     Connection: USB to RS232 cables;

c)     Test interface: curve and tables;

d)     Test report: Microsoft Excel, automatically saved;

e)     Test stop condition: test time or dry percentage

f)       Horizontal and Vertical Hanging specimen racks



Order Information

RF4008        Drying Rate Tester Software

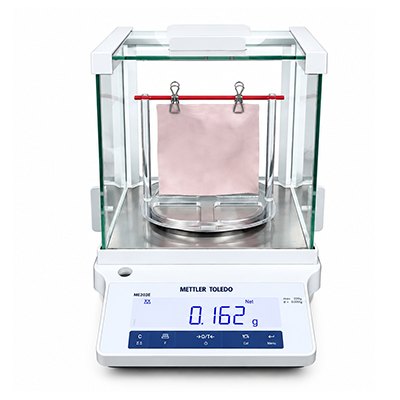

RF4008/1     3 digit Mettler Digital Balance (Resolution:0.001g

RF4008/2     4 digit Mettler Digital Balance (Resolution:0.0001g

RF4008/3     Computer

RF4008/4     Sample Rack (horizontal placed)

RF4008/5     Sample Rack (vertical placed)

RF4008/6     USB Cable

RF4008/7     USB Hub (with 7 USB ports)
