The Digital Tear Tester is an instrument that utilizes the Elmendorf testing method to measure the tear resistance of test samples. The RF3259HU model features an ultra-high range of 256N and adopts advanced technological concepts, offering functions such as automatic range recognition and switching, automatic swing arm return, pneumatic brake, friction compensation, center of gravity deviation compensation, and built-in calibration. It is equipped with computer software for convenient report export and data transmission. Additionally, it can be configured with IoT (Internet of Things) functionality to enable remote data transmission, backup, and other functions.
Test Standards : ASTM D689B, ASTM D96a, ASTM D1424, ASTM D1922, BS 4253, BS 4468, BS EN ISO 13937, BS EN ISO 4674/2, BS EN ISO 21974, NEXT TM17, TAPPI T414, DIN 53128, DIN 53862, GB/T 3917.1, ISO 1974, ISO 4674-2, ISO 6383-2, ISO 13937-1, JIS L1096, M&S P29, NEXT TM17, TAPPI T414, WSP 100.1.R3

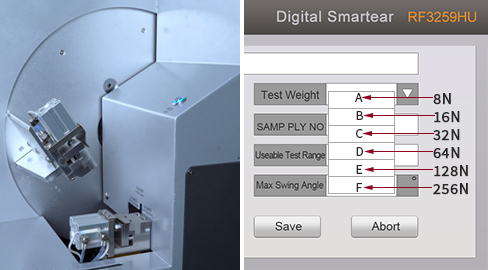

 | Large Weight Anti-lock Design, Supports Ultra-wide Measuring Range of 8N-256N Full-process intelligent automation, intelligent range system, equipped with automatic range identification & auto-switching functions, intelligently matching and adapting weights; ultra-wide measuring range supports
testing of higher-strength materials.
|
|
|

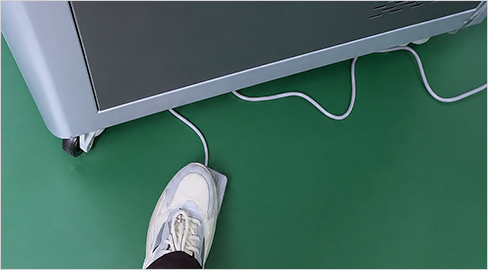

Foot Switch Comes with pneumatic quick clamps controlled by foot switch, which saves time and effort for sample clamping and improves efficiency. |  |
|
|

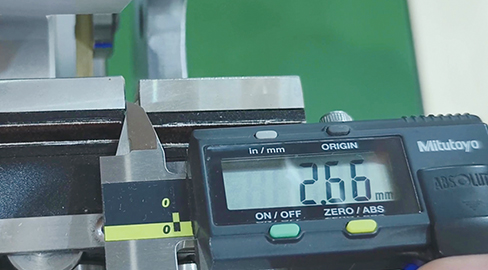

 | Precision Fixture System Adjustable clamping spacing of 2.5-28mm, suitable for different testing standards
|
|
|

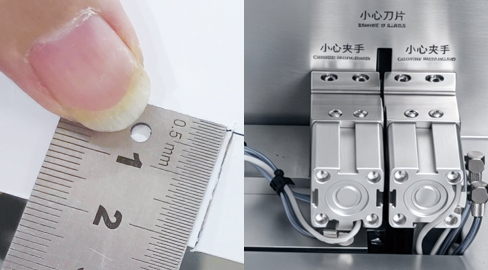

Standardized Incision20 ±0.1mm precise cutting to ensure testing consistency
|  |
|
|
 |
Intelligent Calibration And VerificationTest accuracy ≤ ±0.2% FS, ensuring stable and reliable testing process.

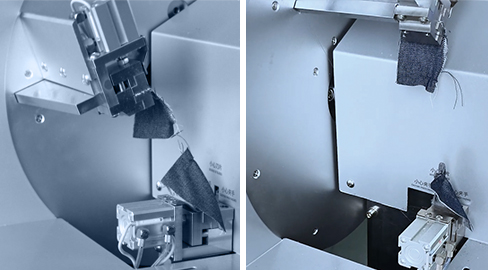

Atear length of 43mmProvides a visual reflection of the material's tear resistance performance, aiding in quality control and comparative analysis.
|
|
|

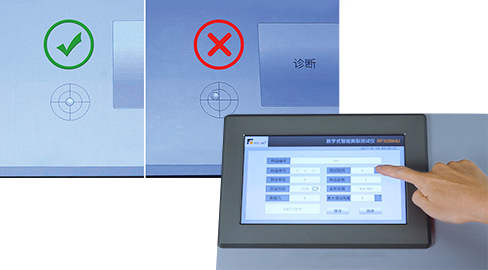

Instrument Level Status Check the instrument level status on the screen before operation.
A centered dot means normal, and re-level calibration is needed if the dot shifts. Real-time Storage of 8 Sets of Data Quickly save results on the touch screen, one-click
export to the computer, putting an end to manually copying reports.
|  |
|
|

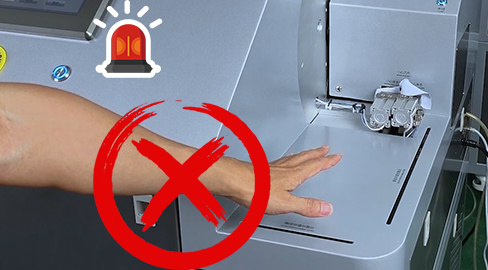

 | Intelligent Safety Light Curtain Protection An intelligent safety light curtain protection is added to the test area,
If the operator's hand extends into the working area during the test,
the equipment will immediately trigger audible and visual alarm. |
|
|
Highly Automated and Intelligent Obtained National Invention Patents |  |
|
|

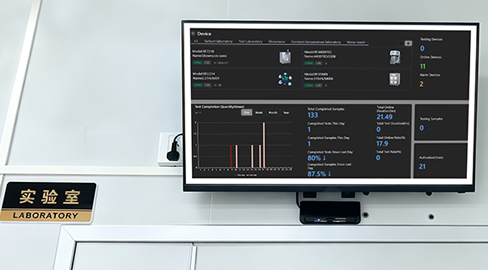

 | Intelligent Management IoT Seamlessly link REFOND Arachno IoT System and laboratory LIMS System, digitally connect data links to simplify laboratory data archiving process. |
|
|
Test Scope Includes sheet materials such as textile products, non-woven fabrics, paper, and plastics.
|  |
|
|
Ordering Information RF3259HU Digital UltraTear (256N) RF3259HU/1 Sample Cutter RF3259HU/2 Sample Clamp Jaw Faces
|
