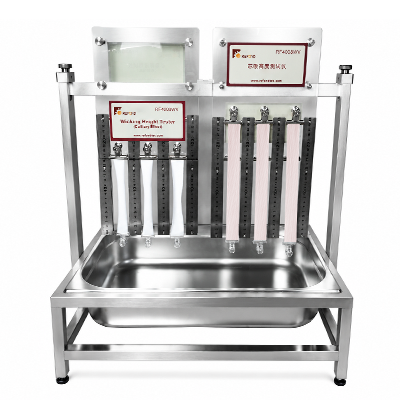

Vertical Wicking Tester , determines the vertical wicking distant and wicking rate of the fabrics which is vertical aligned and immersed into water.

Test Scope： Woven, Knitted and Nonwoven fabrics

Testing Standard：AATCC197， FZ/T 01071,etc.

Specification：

1. Water Container: Min. depth 100mm;

2. 12 pcs specimen clamps, can do FZ/T and AATCC tests simultaneously;

3. 6 pcs 165mm and 6 pcs 250mm stainless steel rulers, resolution is 1mm;

4. 12pcs top specimen clamps for holding the specimens vertically;

5. 12pcs Bottom Tension Clamps ensure the specimens hanging      vertically;

6. Dimension: 560mm（L） x 360mm（W） x 650mm (H)

7. Weight：Approx. 10kg;

Order Information：

RF4008WV              Vertical Wicking Tester

RF4008WV/1           Top Specimen Clamps (12 pcs/pack)

RF4008WV/2           Bottom Tension Clamps (12 pcs/pack)

RF4008WV/3           165mm stainless steel rulers

RF4008WV/4           250mm stainless steel rulers
