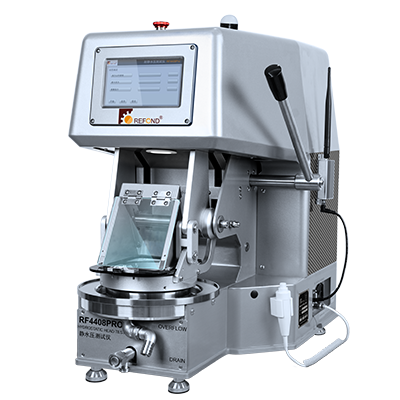

Hydrostatic Head Tester, a specimen placed on a standard fixed size test area, the beneath water keeps on supplying a water pressure under specimen to determines the water penetration resistance of a fabric under constant water pressure.

Hydrostatic Head Tester included different fixed size test head, touchscreen display and micro-computer which may automatically control compression process. The additional pneumatic sample press device helps to hold the sample firmly. Low capacity, suitable for low pressure water-proof test or water penetration test.

Test Scope: Knit, woven and non-woven fabrics.

Test Standards:

Specification:

1.      Pressure range: 0.01-0.6bar (10-600cmH₂O)

2.       Pressure Gradient：10-100mbar/min (Selectable)

3.       Test Head: 100cm²

4.       Pneumatic Sample Press Device: 0-8bar pressure, adjustable

5.      LED lighting, convenience for observing test status.

6.        Multiple testing modes:

a)       Dynamic Test.

b)       Static Test.

7.       Max. pressure protection

8.       Alarm with light and buzzer

Order information:

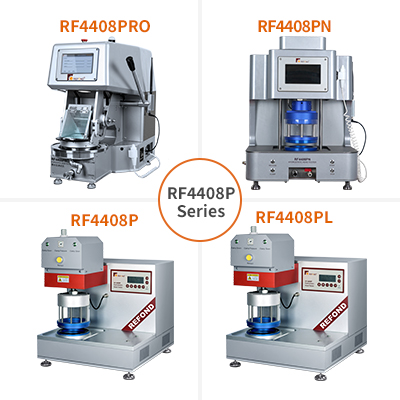

RF4408PL           Hydrostatic Head Tester
