The Automatic Drying Rate Tester is used to determine the evaporation time and evaporation rate when the specimen is being dropped a certain amount of water.
The RF4008ADRT-III adopted a new design concept. The tester is divided into threes layers, the specimen preload area, the test area and the tested specimen collection area. The tested is fully automated, max. 40 specimens can be installed at the same time, and each specimen can be lifted to the test area to perform a series of actions, such as automatic laying the specimen to horizontal position, automatic water dripping, automatic detection of water diffusion, automatic weighing the dry weight and wet weight of specimens, automatic pick up the specimen, automatic queue weighing, automatic calculation of drying rates, etc. All functions are automatically executed, and after a batch of samples are placed, unmanned testing can be achieved under black light conditions.
Testing Standards: ISO 17617 Method A1 Suspension Method、JIS、UNIQLO, etc.
 | RF4008ADRT -III Product Advantages （Suitable for customers with Japanese standard orders） 15 specimens per test; 2 test stations for simultaneous testing; Oversized specimen size: 200×200 mm
|
|
|
Main Functional Zones (A) Sample Waiting Area Built‑in identification chips are equipped on sample holders to (B) Tested Sample Area (Sample Recycling Area) Tested samples are automatically placed in the sample recycling area. (C) Sample Testing Area Samples are grabbed from the sample waiting area and placed on the test platform for orderly testing. |  |
|
|

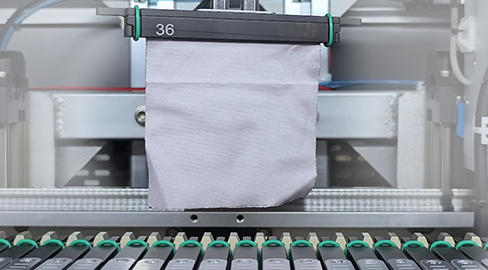

 | Automatic Grabbing Mechanism The robotic arm automatically grabs and flattens samples, identifies the serial number of each specimen, and accurately positions each specimen to its matching station. |
|
|
Automatic Drip Device Using high‑precision water injection pump, the drip sequence and amount are controlled by control software. The drip amount is in the range of 0.03‑0.45mL, and the drip accuracy is 0.03‑0.45mL ± 0.003mL. The drip amount can be set according to testing requirements, and the water absorption error can be set |  |
|
|
 | Drip Diffusion Visual Recognition System Using high‑definition industrial cameras, and recognition control software, it can identifythe time of moisture diffusion and recognize the fastest diffusion time of 0.01 seconds. |
|
|
Weighing Device Using high‑precision Mettler weighing device, can set weighing interval time, automatically recognize weighing queue order, maximum weighing 50g, weighing accuracy: 0.001g |  |
|
|
 | Intelligent Control Sys 13" Large-screen industrial all-in-one unit with touch-screen operation, wireless keyboard & mouse and USB expansion; space-saving concealed design. Auto-calculate test results. PC software displays curves and charts simultaneously, supports Excel and PDF report export. Auto-save for convenient printing. |
|
|
Highly Automated and Intelligent Obtained National Invention Patents Intellectual Property & Honors This project has been selected for the "Light of Textile" 2025 Compilation of Cooperation Projects for the Promotion of Specialized, Precise, Unique, and Innovative New Products and Technologies in the Textile Industry |  |
|
|
 | Intelligent Management IoT It can seamlessly connect with REFOND Arachno IoT system and laboratory LIMS system to realize cloud-based data management and greatly improve testing efficiency. |
|
|
Test Scope Knitted fabrics and quick-drying fabrics |  |
|
|
Ordering Information
RF4008ADRT-III Automatic Drying Rate Tester RF4008 ADRT /1 USB Cable RF4008 ADRT-III /2 Specimen Holder RF4008 ADRT /3 Weighing Device RF4008 ADRT-III /4 Supporting Frame for Specimen Holder
|
|
