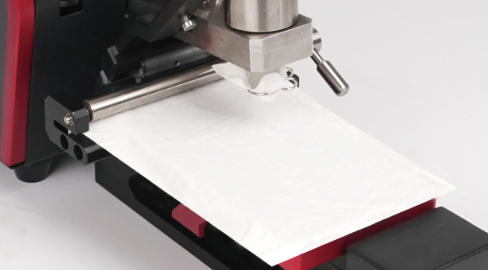

Test Method (2)

No need to cut samples

The open sample clamp design allows test

 samples to be placed directly into the clamp

without cutting, achieving multi-point clamping

in front, back, left, and right directions to ensure

that the sample does not slide

or wrinkle when rubbed.

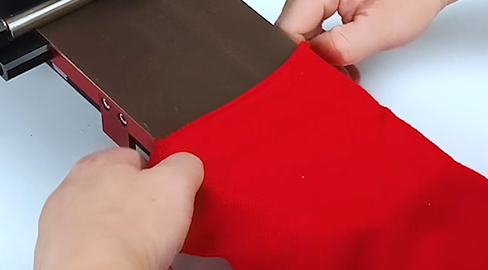

Test Method (3)

Suspended base

specially designed for circular samples,

achieving 100% non-destructive testing on

special areas such as cuffs and pant legs

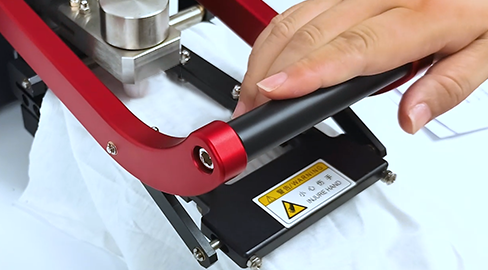

Intelligent and effortless

operation makes testing easier

The design of the quick handle also hides secrets.

When the handle is lifted, it will drive the test head

to rise together, making it easy to replace the crocking

cloth. When the handle is pressed down, it can

achieve self-locking function when it reaches

the vicinity of the sample, making the

operation fast and effortless.

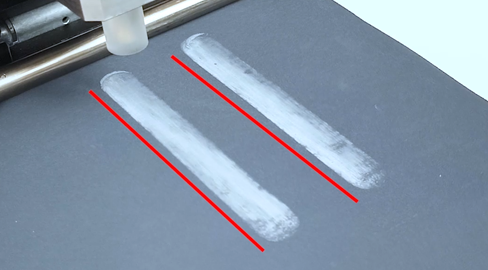

Linear Guide Drive

Driven by linear guide rails, the rubbing trajectory is

 straight and precise, completely eliminating S-shaped

 deviation. The reliability of data increases linearly,

 providing a solid basis for quality judgment.

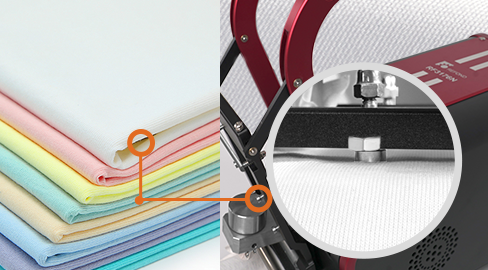

Self-adaptation to

Different Thicknesses

Pressure Spring Type DesignCapable of

self-adapting to specimens of different

 thicknesses, Spring Self-adaptive Clamping

System, Easy testing for elastic and heavy fabrics

Highly Automated and intelligent

Obtained National Patents

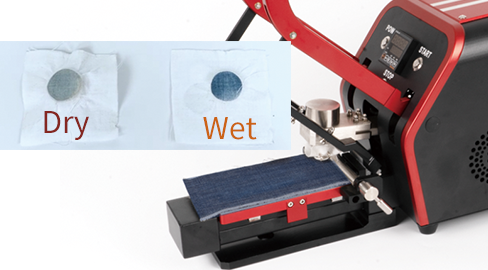

Test Scope

Heavy fabrics, elastic fabrics, denim,

for testing dry and wet rubbing fastness

of textiles, etc.

Ordering Information

RF3176N    Electronic Crockmeter

RF3172/1   Test Finger 16mm diameter

RF3172/2   Sandpaper (25pcs/pack)

RF3172/7   19mm x 25.4mm rectangle Test Head
